Three Layers Air Bubble Film Machine

Contact Us

Inquiry Basket

OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year

Product Details

Three Layers Air Bubble Film Machine

The machine for producing Three Layers Air Bubble Film, also known as air bubble wrap film extrusion, is equipped to handle Low Density Polyethylene (LDPE) and recycled LDPE materials. It comes in various machine widths of 1200mm, 1500mm, 2000mm, 2500mm, and 3000mm, with a two-layer bubble film capacity. Power options are available in 220V, 380V, 440V, and 480V, and the bubble film is offered in colors such as red, blue, and yellow. This air bubble film machine is characterized by its straightforward design.

Diagram of a three layers air bubble film machine, illustrating components such as hoppers, extrusion system, and bubble film production process, relevant to LDPE material processing and specifications.

Technical Variables:

Model KDPEG-1000 KDFPG-1200 KDPEG-1500
Raw Material LDPE,recycle material,masterbatch and additives material
Screw Diameter φ65mm+φ50mm φ75mm+φ60mm φ90mm+φ70mm
Bubble film Max. width 600mm 1200mm 1500mm
Bubble Film Layer 3 layers,4 layers,5 layers
Bubble Film Color Transparent,Black,Red,White,blue…bag color changed by masterbatch
Output 55kg/h 70kg/h 90kg/h
Total power 75kw 82kw 98kw
L/D Ratio Of Screw 28：1 28：1 28：1
Water Consumption 0.5m3/h 0.5m3/h 0.5m3/h
Machine Weight 3.5 4.5 5
Power Voltage 220V,380V,440V(Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Air Shaft Diameter without paper core ,58mm,76mm
Machine Working Time 24 hours*7
Warranty 1 year
Technical Assistance Engineers available to service machinery overseas

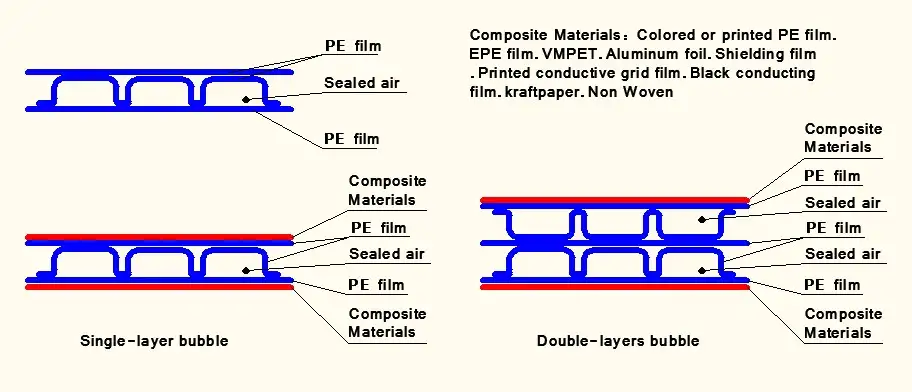

Diagram comparing single-layer and double-layer air bubble film structures, highlighting materials like PE film, sealed air, and composite materials used in manufacturing bubble films.

two layers air bubble film machines

Air bubble wrap film in various colors, including transparent and pink, showcasing rolls and sheets, with a close-up of a bubble film texture and a mobile phone wrapped in bubble film, relevant to air bubble bag production machinery.

air bubble wrap film bubble bag

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

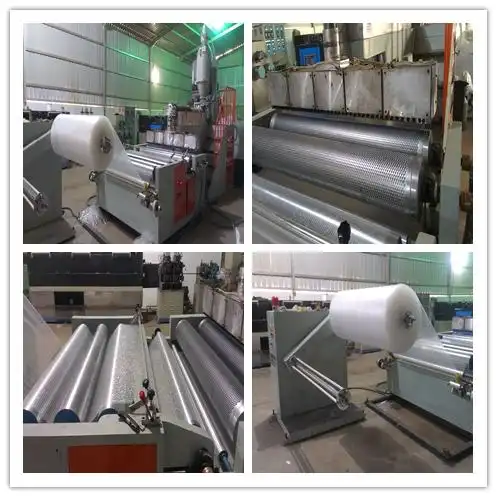

Bubble Film Machine Working in Customer Factory

Two-layer air bubble film machine in a factory setting, showcasing production process with rollers and bubble film output.

two layers air bubble film machines

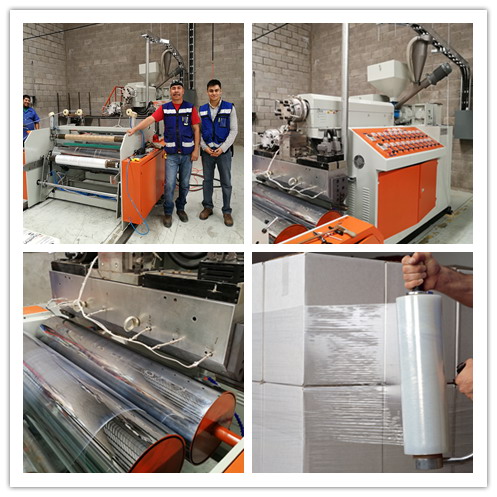

Install Strech Film Machine in Customer Factory

Two operators next to a two-layer air bubble film machine in a factory setting, showcasing machinery used for producing air bubble wrap, with close-up views of film rolls and packaging process.

install machines in customers factory
